Welcome, if you are looking for Custom Mounting brackets to transplant an 02m (and NOW) 02q or DSG (02E) 6speed tranmission into your Mk2/Mk3/Corrado, then you are in the right place!

About me: I am a fellow enthusiast producing high quality mounts for VW 02m, 02q and DSG (02E) 6 speed transmission swaps into Mk2, Mk3 and Corrados. I pride myself on being meticulous and sacrifice nothing. This is the reason I continue to use more expensive 3/16" waterJet cut steel when 1/8" would be strong enough for even a big turbo setup. Ask around and you will likely find someone you know is running a set of my mounts. They can attest my quality and quick delivery.

If you are interested in viewing my project build thread (where this all started), here is the link: Project Build sc2020


I try to keep a couple of sets in stock and ready to go for various applications. During times of high demand or one off mounts, I can whip up a set with just a couple of days lead time. I personally do all fabrication, so there are never any excuses waiting on a 3rd party to make your mounts!


NEW - Axle Reference -> Here


Pricing:

-

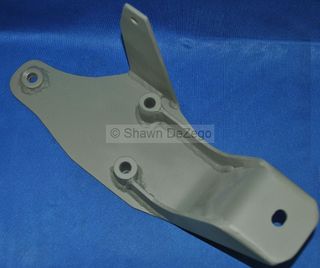

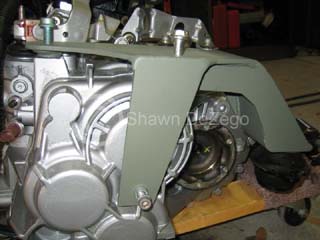

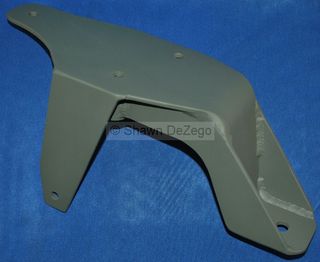

Rear 02m Transmission Mounting bracket (fits sll Mk2 /Mk3 Chassis - 4/6 Cyl, FWD or Haldex) **
$249.00 + shipping/ins.

** Requires moving the transmission mount cup on the subframe ("K-Frame") approximately 5/8" to properly clear the larger 02m CV flange. This is very easy to do and is detailed in the installation instructions.

-

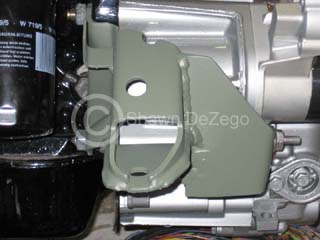

4cyl - MkII Front Mounting Bracket (acceptable for less than 175whp) (fits later Mk2s using 191 199 273 C front engine bracket). Some early US built '85-'86 G/Js used a very weak non-Hydro mount setup which can be converted to a similar style shown above. if you have an '85 or '86 and think you have the early style mount, please email me.
$135.00 + shipping (no Core necessary) - Price includes special starter motor studs and hardware

-
4cyl - MkII Front Mounting Bracket "The Ultimate" (recommneded +200whp) (fits later Mk2s using 191 199 273 C front engine bracket). This bracket is fabricated completely from scratch and made completely with 3/16" waterjeted steel. This bracket usually requires 2 day lead time. I strongly recommend the use of Vibratechnics mount for 200whp+.
$175.00 + shipping (no Core necessary) - Price includes special starter motor studs and hardware

-
4cyl - MkIII Front Mounting Bracket (also fits Mk2 using stronger Mk3 style front engine carrier from Corrado VR/B3 VR or Passat B4)
$145.00 + shipping (no Core necessary, $25 credit if provided) - Price includes special starter motor studs and hardware

-
6cyl - 12v VR6 Front Mounting Bracket (fits All Mk2 or Mk3 6 Cyl Vr using Mk3 style front engine carrier)
$175.00*** + shipping

-
6cyl - 24v R32/36 Front Mounting Bracket - Using Stock Oil/Water Cooler
$195.00*** + shipping

-
6cyl - 24v R32/36 Front Mounting Bracket - Using Aftermarket Oil Cooler (Sandwich Plate)
$185.00*** + shipping

 Disclaimer: Shipping to Cont US, shipped Fed-Ex Ground or USPS Priority Flat Rate (Fully insured and tracked). You must request and pay extra for Signature service. All prices listed above are subject to change without notice due to fluctuating fixed costs. By ordering from us, you agree to these terms.

International Customers: Prices for US Postal Service (Large Flate Rate Box - Priority Mail - ~6-10 day delivery). As of 01/2023 shipping is currently running $77 to Canada and $117 to UK + insurance. You can order via the above links and I will email you the exact shipping cost supplement necessary. You are responsible for any VAT or import fees that your country may require. COVID-19 has provien to cause excess shipping delays internationally and in some cases, no longer available. If you have any questions or concerns, please refer to usps.com and verify your location.

If you have any questions regarding fitment or application, supplying a core or shipping out of the US, please email.
Please email at: sdezego@bellsouth.net
